Look up while walking on the street and you’ll definitely see some cables stretched from poles or towers. These are overhead power lines; they are the backbone of modern electricity delivery. They carry energy from mile away to keep daily life running smoothly.
Most people see them every day but don’t really understand how they work or the safety codes. Knowing more about overhead lines offer valuable insight into how electricity flows safely and reliably.
In this guide, we’ll explain all about overhead power lines and how they compare with underground lines and why they matter for today’s energy projects.
An overhead power line is a line of wires suspended above the ground to transmit electricity. These lines are part of a larger electric power system responsible for carrying energy from power-generating plant to consumer.
A power line is made of conductor wire supported by poles or towers. They’re kept safe with insulator that prevent current from leaking into the supporting structure. Depending on where the electricity needs to go, these line can either be transmission lines (long-distance, high-voltage) or distribution lines (short-distance, lower-voltage).
Think of it like highway system. Transmission lines are like interstates moving large amounts of energy quickly over long distances. Distribution lines are like local roads delivering smaller amounts of electricity directly to your homes.
To understand how power lines work, imagine electricity as water flowing through a network of pipes. The flow starts at a power plant, travels through high-voltage lines, and finally it reaches your lightbulb at home.
Here’s the simplified flow of electricity:
High voltage is key here. The higher the voltage, the less energy is lost along the way.
When you look at overhead power line from the ground and it may just seem like a set of wires strung across poles or towers but in reality, these lines are carefully engineered systems made of multiple parts working together. Each piece of overhead line hardware has these roles-Â

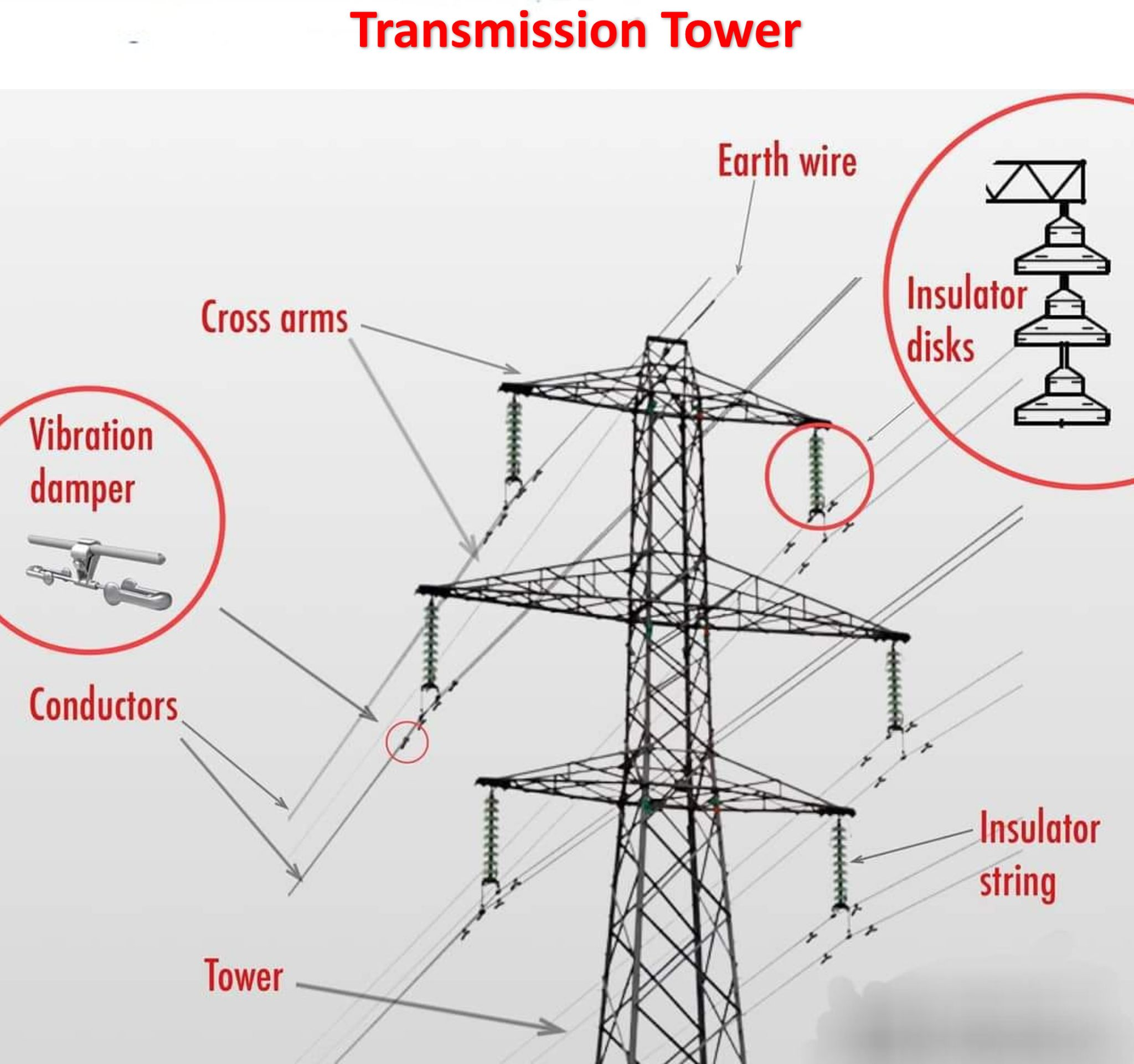

Let’s break down the key components of overhead power lines one by one.
Every power line has conductor wires. These are the actual cables that transport electricity across distances.
Most conductors are made of aluminum and sometimes reinforced with a steel core for added strength (known as ACSR—Aluminum Conductor Steel Reinforced). Aluminum is preferred more because its-Â
Conductors are designed to minimize power losses and to withstand environmental stress. Without strong and efficient conductors, no power will move from one point to another.
If electricity could flow freely into poles or towers, it would have been dangerous and inefficient. That’s where insulators come in.
Insulators are typically made of glass, porcelain, or composite polymers. They keep the live conductors from touching grounded structures. They also withstand harsh environment conditions.
In addition to preventing leakage insulators provide mechanical support, ensuring that conductors remain securely attached to poles or towers even under stress.
Poles and towers are used to hold the conductors high enough above the ground for safety and efficiency.
If poles and towers are the skeleton, then crossarms and clamps are the bones that keep everything in place.
Crossarms extend horizontally from pole providing space to mount multiple conductors at safe distance from each other. Clamps, brackets, and spacers are needed so that the wires don’t sag too much or swing dangerously in strong winds.
This small but vital hardware prevents-Â
Overhead lines are exposed to the elements which means lightning strike are a real risk. To protect them a thin ground wire is often strung along the top of towers.
When lightning strikes, this wire safely redirects the surge into the earth to protect the conductor wires and connected equipment. Ground wires also help stabilize the system against unexpected voltage spikes and ensure compliance with line grounding standards.
Beyond the major parts, a power line relies on numerous line hardware accessories to function smoothly. These include:
These accessories are small but it makes a big difference in the overall reliability and lifespan of a power line.

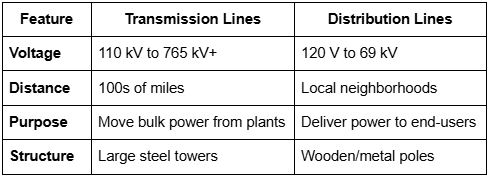

Overhead power lines fall into two main categories: transmission lines and distribution lines.
Transmission lines are the “highways” of the electric grid. They carry huge amounts of electricity from power plants to substations stretching for hundreds of miles. These lines are built with very tall steel lattice towers that can carry voltages anywhere from 110 kV to 765 kV or more.
If you’ve ever driven across open countryside and you must have seen massive towers marching across the horizon and those are transmission lines. They’re designed to minimize energy loss over long distances and keep the entire city powered.
Once the electricity reaches substations, it needs to be stepped down to safer levels for local delivery. That’s where you need distribution lines. These are the lines you see running along neighborhood streets or behind homes.
Distribution line operates at much lower voltages—ranging from 120 volts up to around 69 kV—depending on whether they supply. Wooden and concrete poles support these lines which makes it a familiar sight in cities and suburb.
To make things clearer, overhead power lines are also classified into three groups based on their voltage:
This breakdown shows how electricity steps down gradually—from extremely high voltages for cross-country travel to much lower voltages safe enough for everyday use.
Working with or around overhead power lines isn’t just about technical know-how—it’s about strict compliance with overhead line safety standards. These guidelines exist to protect workers and the public from accidents caused by high-voltage electricity. Engineers, installers, and contractors must follow specific-
Let’s look at the most important standards that apply globally.
The NEC (NFPA 70) is the go-to reference in the United States for overhead line design and installation. It sets minimum requirements for:
A practical example: when utility companies install new neighborhood distribution lines, they follow NEC tables that specify safe heights over driveways, sidewalks, and roofs.
The Occupational Safety and Health Administration (OSHA) focuses on line maintenance safety and protecting workers who build or service overhead lines. Key OSHA requirements include:
Outside the U.S., the International Electrotechnical Commission (IEC) provides harmonized safety standards for overhead power lines. IEC standards cover everything from the mechanical strength of poles to electrical clearance in different climates.
This helps create consistency across regions. For example, Europe follows EN 50341, an IEC-based standard that specifies minimum line heights above farmland, taking tractor and machinery clearance into account.
Without these codes, the risk of accidents—from electrocution to line failures—would increase dramatically. Following NEC, OSHA, and IEC rules ensures:
.png)

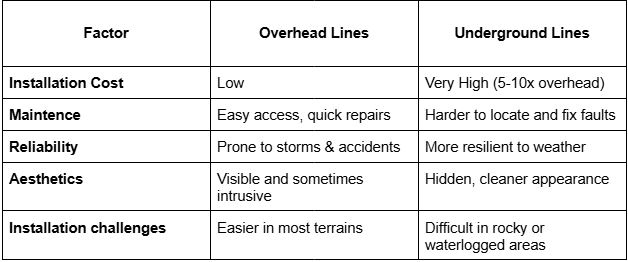

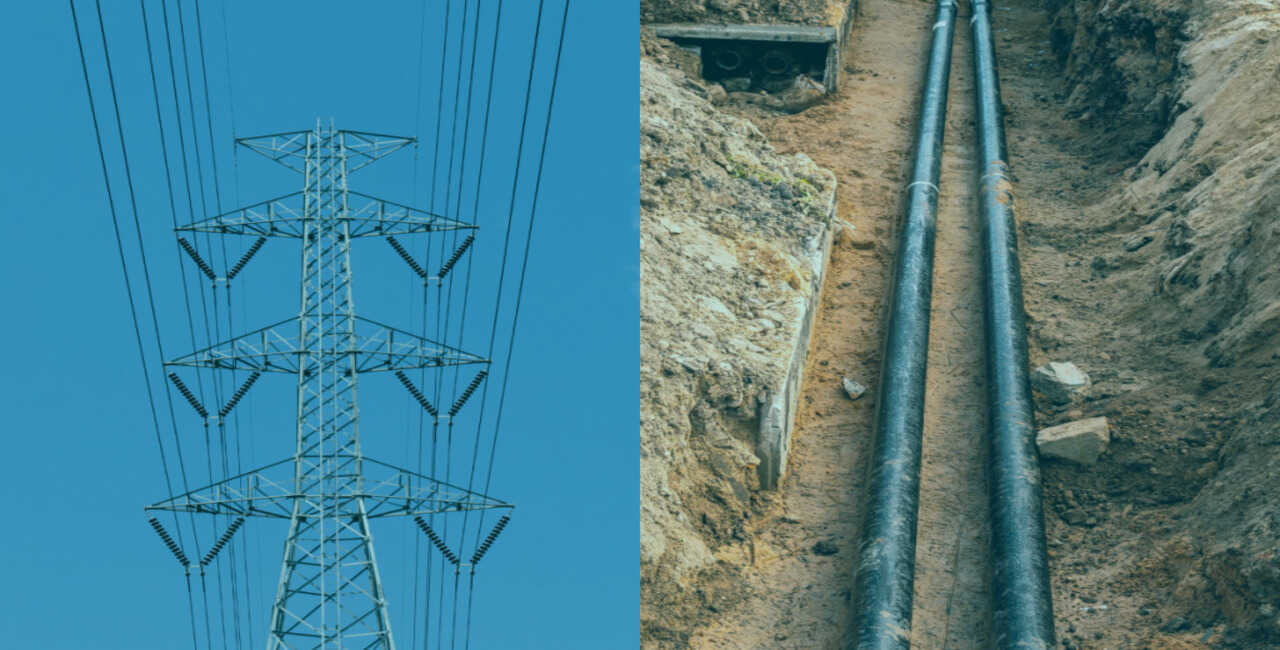

When planning or upgrading an electric grid, one big decision is whether to use overhead or underground power lines. Both have unique strengths and challenges, and the choice often comes down to cost comparison, reliability, and installation requirements.
Overhead lines are the most common worldwide because they’re cheaper and quicker to install. They’re also easier to repair after storms or equipment failures, since crews can access the lines directly.Â
However, their biggest drawbacks are exposure to weather, accidents, and visual impact. Strong winds, ice, or falling trees can easily bring down conductors, leading to outages.
Underground cables, on the other hand, offer a cleaner look and much better protection against storms and accidents. They are less likely to fail from weather events and often have higher reliability in urban areas.Â
But these benefits come with challenges—installation costs are far higher, repairs take longer, and in flood-prone areas, underground systems can be more vulnerable than overhead ones.
How dangerous are overhead power lines?
Overhead power lines are extremely dangerous because they carry high-voltage electricity that can cause severe injury or death on contact. Safe clearance distance and strict overhead line safety standards are required to prevent accidents.
What voltage do residential power lines carry?
Residential power lines usually carry low-voltage electricity, typically 120–240 volts in the U.S. and 230 volts in many other countries. These are stepped down from higher-voltage distribution lines.
How are power lines maintained?
Power lines are maintained through regular inspections, vegetation management, and line maintenance safety practices like grounding and protective equipment testing. Utilities follow NEC and OSHA guidelines to reduce risks.
Who regulates power lines?
In the U.S., power lines are regulated by agencies like the Federal Energy Regulatory Commission (FERC), OSHA, and the National Electrical Code (NEC). Globally, standards are set by bodies such as the IEC and national regulators.
.png)
Overhead power lines are important for safe and reliable electricity distribution. Understanding their components, safety requirements ensures compliance, and supports efficient project execution.
This knowledge builds confidence in meeting NEC standards while avoiding costly mistakes. It also strengthens safety for workers and communities, making every project more dependable and future-ready.
If you’re working on power distribution or solar projects, solar design software like Arka360 helps you design compliant, cost-effective proposals with NEC-based safety calculations built in—streamlining your work while keeping safety first.
‍
