Exploring Solar Panel Mounting Systems: Types and Considerations for Installers

Solar energy has emerged as a major factor in the race for sustainable and clean electricity generation as the demand for renewable energy keeps rising. With its capacity to capture the sun's plentiful energy, solar panels have grown in popularity among homeowners, companies, and governments looking to lessen their carbon impact and dependency on fossil fuels.

However, solar panels' benefits and efficiency are not simply reliant on technical developments. The planning and execution of the mounting mechanisms that hold these panels aloft are equally crucial. Solar panel mounting solutions are essential for maximizing solar energy generation because they give the panels a safe and advantageous orientation for capturing sunlight.

We explore the numerous types of solar panel mounting systems that are available as well as the factors that installers must take into account when selecting and installing them in this thorough guide.

This article will arm you with the information to make educated decisions and guarantee the success of your solar projects, whether you are a professional installer, a homeowner considering solar panel installation, or simply an enthusiast inquisitive about the physics underlying solar energy.

We'll start by looking at the many kinds of solar panel mounting solutions that are frequently employed in the sector.

Each kind, from roof-mounted alternatives to ground-mounted systems, has specific benefits and considerations that should be weighed against issues including limited space, structural compatibility, and local weather conditions. Installers can choose the best alternative for their unique project requirements by knowing the features of each system.

We will also go through the important factors that installers need to keep in mind while choosing and setting up solar panel mounting solutions. These features include things like the ability to support weight, the simplicity of installation, the flexibility to alter panel tilt and azimuth for best results, and compatibility with different types of roofs.

To preserve the lifetime of the roof and guard against any potential damage, we will also discuss the significance of effective waterproofing and roof sealing procedures.

This guide aims to empower both professionals and those interested in solar energy to make knowledgeable decisions when it comes to choosing, installing, and maintaining their solar panel arrays by offering insights into the various types of solar panel mounting systems and the crucial considerations for installers.

Through this investigation, we seek to aid in the widespread use of solar energy and the realisation of a more ecologically friendly and sustainable future.

Understanding Different Solar Panel Mounting Options

The mounting system is a critical factor to consider while installing solar panels. The positioning and security of the solar panels are determined by the mounting process, which affects their durability and efficiency.

There are several solar mounting options, each suited to various roof types, ground solar panel installations, and particular project requirements. To get the most out of your solar energy systems, it is crucial to comprehend these various solar panel mounting alternatives.

1. Roof Mounting-

The most typical installation technique for residential solar panels is roof mounting. It includes employing several mounting devices to firmly fasten the solar panels to the roof. The following are the top three types of roof mounts:

• Flush Mounts: These mounts have a smooth, integrated look and are positioned parallel to the roof surface. They work best on roofs that have plenty of solar exposure and solid structural support.
• Tilted Mounts: These mounts are tiltable and let you position your panels at the best angle for soaking in the most sunlight. In places where it is convenient to change the panel angle with the seasons, tilted mounts are helpful.
• Ballasted Mounts: These mounts are suitable for flat roofs and don't require any roof penetrations. Instead, weighted structures like concrete blocks are used to hold the solar panels in place. They need little roof alteration and are simple to install.

2.   Ground Mounting-

When solar panels cannot be mounted on rooftops or when there is sufficient ground space, ground mounting systems are used. They allow for easy panel tilt angle and orientation modifications. Several popular ground-mounted choices are as follows:

• Pole Mounts: Solar panels can be easily tracked throughout the day since they are installed on top of robust poles. Maximum sun exposure and energy production are guaranteed in this way.
• Tracker Mounts: These advanced systems use motorized trackers to follow the sun's path from sunrise to sunset. Tracker mounts optimize energy production by keeping the panels perpendicular to the sunlight, resulting in increased efficiency.
• Fixed-Tilt Mounts: These are non-adjustable ground mounts with a fixed tilt angle optimized for the location's latitude. Fixed-tilt mounts are more cost-effective and require less maintenance compared to adjustable systems.

3.  Integrated Building Materials-

Some solar panels can be integrated into building materials, such as solar shingles or solar tiles. These innovative options blend seamlessly with the roof's appearance while generating electricity. They offer a more aesthetically pleasing solution, particularly for new constructions or roof replacements.

Factors to Consider-

When choosing a solar panel mounting option, several factors should be taken into account:

• Local Climate: The choice of a mounting system might be influenced by the quantity of sunshine, the wind conditions, and any potential snow loads in your region.
• Energy Efficiency: Although tilt and tracking systems can maximize energy production, they are more expensive. Compare the needed investment to any possible advantages.
• Aesthetics: Integrated building materials or low-profile flush mounts may be desirable if aesthetics are a top consideration.

To ensure an effective and durable solar energy system, it is essential to comprehend the numerous solar panel installation alternatives. You may maximize the advantages of solar electricity while improving the beauty of your home by choosing the appropriate mounting option depending on your location, structural concerns, and energy goals.

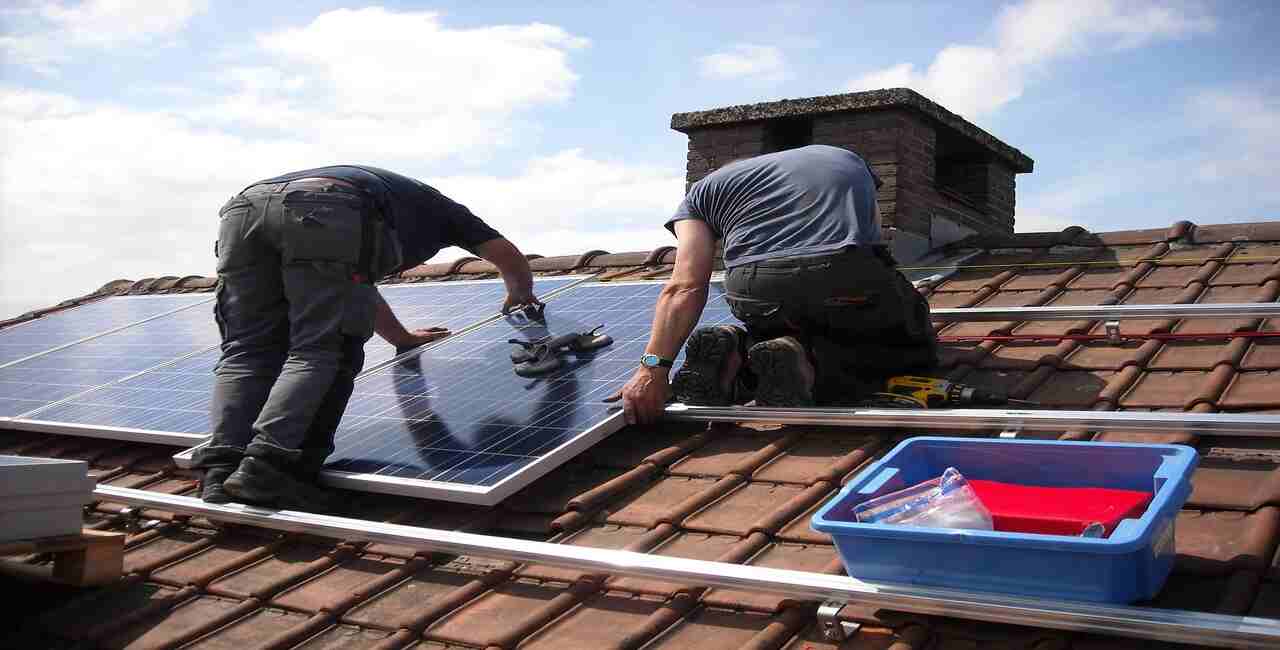

Roof-Mounted Systems: Pros, Cons, and Installation Tips

In the field of sustainable energy generation, roof-mounted systems have emerged as a ground-breaking solution, providing a useful and effective approach to harvesting solar energy.

Between several solar mounting structures, the use of roof-mounted systems has accelerated significantly throughout the residential, commercial, and industrial sectors as the need for clean and renewable energy sources rises.

A roof-mounted system installs solar panels on building rooftops to produce power from unused space. These systems' tremendous potential is based on solar energy, which is cheap, abundant, and environmentally beneficial.

Roof-mounted systems enable people and organizations to significantly reduce their dependency on conventional energy sources by gathering sunlight and turning it into power using solar cells.

The adaptability and flexibility of roof-mounted systems to a variety of architectural forms is one of its main advantages. These systems may be smoothly incorporated into the current infrastructure of any structure, whether it is a private residence, a business building, or an industrial site, without causing significant disturbances.

Additionally, because the panels are modular, customers may scale up the system as their energy requirements change over time.

Numerous advantages of roof-mounted systems include lower energy expenditures, a less carbon footprint, and greater energy independence. These systems are becoming more effective, economical, and visually stunning as solar technology develops, making them an increasingly appealing option for both individuals and companies.

Here is a table listing the benefits and drawbacks of solar power systems with roof mounting:

When it comes to installing roof mounting systems for solar panels or other equipment, there are several important tips to keep in mind to ensure a successful and secure installation. Here are the top installation tips:

1. Roof inspection: Before putting in any mounting system, check the roof carefully to see if it is acceptable for installation and structurally sound. Examine the roof for any indications of damage, weak places, or other problems that might compromise its structural integrity.
2. Select the Correct Mounting System: Whether your roof is sloped or flat, your mounting system should be compatible with it. To make sure the mounting system is suitable for your particular roof, take into account elements like weight, required wind loads, and mounting system material.
3. Follow Manufacturer's Instructions: Carefully read and adhere to the mounting system manufacturer's installation instructions. These directions include crucial directions on correct assembly, attachment locations, and other crucial information unique to the device.
4. Use High-Quality Materials: Invest in high-quality fasteners, brackets, and rails for mounting. These parts must be durable over time and able to resist a variety of weather conditions. Using inferior materials might jeopardize the system's integrity.
5. Waterproofing and Flashing procedures: During the installation, be sure to use waterproofing and flashing appropriate procedures. This is essential to stop leaks and water infiltration that might harm the mounting system and the roof. Adhere to industry best practices and, if necessary, seek the advice of roofing specialists.
6. Securing the Mounting System: Ensure that the mounting system is firmly fastened to the roof structure. Use the proper fasteners, and adhere to the stated torque and spacing recommendations. The system will be stable and wind uplift resistant provided it is securely fastened.
7. Local construction Codes: If using roof-mounted systems, make sure to check and abide by any applicable local construction codes. This includes obtaining any installation permissions necessary and abiding by any particular rules established by the regional authorities.

Ground-Mounted Systems: Benefits and Installation Considerations

Solar panels that are positioned directly on the ground as opposed to roofs or other structures are referred to as ground-mounted solar panels. These systems demand careful installation and have several advantages. Here are some crucial details:

Ground-Mounted Systems' advantages include-

1. Optimal Sun Exposure: Ground-mounted devices can be placed in a way to get as much sun as possible each day. Ground-mounted systems may be installed in open spaces with unrestricted access to sunlight, unlike rooftop installations that may have shading concerns from neighboring structures or plants.
2. Increased Efficiency: Tracking devices that enable solar panels to move with the sun's movement can be included in ground-mounted systems to maximize energy production. Comparing this to fixed rooftop installations, the system's efficiency may be greatly increased.
3. Flexibility in System Size: Ground-mounted systems provide more size and capacity flexibility. They are excellent for commercial and utility-scale installations when space is not a concern since they can support bigger arrays of solar panels.
4. Easier Maintenance and Access: Ground-mounted systems make it simpler to maintain and clean solar panels since they are more easily accessible. Because of its accessibility, the system performs and lasts longer overall. It also makes repairs, replacements, and inspections easier.
5. No Roof Constraints: Ground-mounted systems do not have any restrictions due to the size, construction, or state of the roof. They are therefore a great choice for homes with improper roofing or for structures that need structural inspections before solar installation.

Installation Considerations:

1. Land Availability: Ground-mounted systems are better suited for bigger properties or broad fields since they need an adequate amount of open ground. To ascertain if the available ground can support the intended system size and orientation, a complete site study is essential.
2. Land Preparation: The ground needs to be adequately prepared before installation. This includes trimming back any vegetation, leveling the ground, and fixing any possible drainage problems. Additionally, getting permission and adhering to municipal restrictions may be necessary for site preparation.
3. Structural Integrity: Ground-mounted systems' mounting structures must be built to withstand a variety of environmental elements, including wind, snow loads, and seismic activity. To guarantee the stability of the solar array, the construction has to be sturdy and well-secured.
4. Infrastructure and Wiring: To link the solar panels to the electrical grid or battery storage system, ground-mounted systems need the proper electrical infrastructure and underground wiring. According to applicable electrical regulations and safety requirements, proper wiring and electrical components must be installed.
5. Environmental Impact and Ground Disturbance: Excavation is required for ground-mounted system installation, which may cause some ground disturbance. Environmental effects must be kept to a minimum by taking steps to reduce erosion, stabilize the soil, and protect any existing plant or wildlife habitats.
6. Permits and Rules: It's important to comprehend and abide by local construction standards, zoning laws, and permitting procedures before installing a ground-mounted solar system. This may entail getting licenses for land use, installing electricity connections, and adhering to setback guidelines or aesthetic standards.

Overall, ground-mounted solar systems are advantageous because they receive the most sun exposure, are more efficient, and can be customized in terms of size.

To achieve a successful installation, it is vital to carefully assess the availability of land, site preparation, structural soundness, wiring, environmental effects, and adherence to rules. It is advised to get advice from seasoned solar experts to manage these concerns successfully.

Evaluating Ballasted and Railed Mounting Systems

Ballasted and railed mounting systems are two common methods used to install solar panels in photovoltaic (PV) systems. Let's evaluate each of these mounting systems:

Ballasted Mounting Systems-

Ballasted mounting systems rely on the weight of the solar panels and additional ballast (such as concrete blocks or gravel) to secure the array to the roof or ground. Here are the advantages and disadvantages of ballasted mounting systems:

The following are key points to consider when evaluating ballasted mounting systems for solar panels:

1. Roof or Ground Load Capacity: Ballasted systems depend on the weight of the panels and extra ballast to hold the array in place. It is important to determine if the roof or the ground can take the additional weight without harming either structure.
2. Roof Type Compatibility: Ballasted systems are appropriate for a range of roof types, including flat roofs and roofs with a constrained load-bearing capability. However, it is crucial to confirm compatibility with certain roofing materials and guarantee that the system is made to stop leaks and roof damage.
3. Mitigation of Wind Uplift: Because ballasted systems do not employ mechanical anchoring, correct engineering and design are essential to guarantee stability during strong winds or storms. Techniques for reducing wind uplift, include employing ballast calculations, wind deflectors, or roof attachments
4. Predetermined Tilt Angle and Orientation: In contrast to railed systems, ballasted systems frequently have a predetermined tilt angle, which restricts the ability to optimise the orientation and direction of solar panels for optimal energy output. The fixed tilt angle of the solar panels affects the overall energy production, and it is important to consider whether it aligns with the site's potential for solar resources and the ideal solar panel direction. Thinking about the solar panel direction is crucial as it determines how effectively the panels capture sunlight throughout the day, maximizing their energy generation.
5. Ballast Material and Design: Choosing the right ballast material (such as concrete blocks or gravel) and creating the arrangement of the ballast are crucial considerations. In addition to taking into account the simplicity of installation, weight distribution, and any potential site-specific restrictions or limits, the ballast should provide enough weight to hold the array in place.
6. Maintenance and accessibility: Since there are no roof penetrations, ballasted systems typically require little maintenance. If repair or cleaning becomes essential, make sure the design permits secure and simple access to the panels. Take into account any additional safety precautions that workers on ballasted arrays may need.

Railed Mounting Systems-

Railed mounting systems use aluminium or steel rails that are attached to the roof or ground, providing a framework on which the solar panels are mounted. Here are the advantages and disadvantages of railed systems:

Here are key points to consider when evaluating railed mounting systems for solar panels:

1. Design Flexibility: When compared to ballasted mounting systems, railed mounting systems offer more design flexibility. Based on the exact location and sun path, it is possible to better customise energy output by adjusting tilt angles and panel orientation.
2. Wind Resistance: Because railed systems are mechanically attached to the roof or the ground, they offer improved wind resistance. The system must be properly engineered and installed to survive strong winds and storms.
3. Roof Compatibility: Although railing systems are typically adaptable, it's crucial to consider compatibility with a particular type of roof. Roof slope, material, structural soundness, and any restrictions or criteria set out by the roof manufacturer should all be taken into account.
4. Installation Difficulty: When compared to ballasted systems, railed systems often require more sophisticated installation. They may entail roof penetrations and call for extra parts like rails, clamps, and attachments. This intricacy may affect labour costs, installation time, and potential building or structure disturbance.
5. Accessibility and Maintenance: Railed systems make it simpler to maintain, clean, and maybe replace solar panels. This ease can help keep maintenance costs down and guarantee peak performance for the whole system's life.
6. Integration with Other Equipment: Railed mounting solutions are frequently compatible with other roof-mounted devices, such as skylights, ventilation units, or other structural elements. Take into account any specifications for compatibility and cooperation with current or upcoming roof-mounted infrastructure.

The analysis of ballasted and railed mounting systems has shed light on the advantages and disadvantages of each system for the installation of solar panels.

The decision between the two systems depends on several variables, including the needs of the project, the characteristics of the site, and the available resources. Each system has its distinct benefits and considerations.

Conclusion

The exploration of solar panel mounting solutions has shown the many kinds and factors that installers must consider. The overall performance and lifetime of a solar panel installation are significantly influenced by the mounting system selected.

Solar installers must take into account elements including structural integrity, weather resistance, simplicity of installation, and maintenance needs whether they are mounting the system on the roof, the ground, or in a tracking system. Installers may increase the effectiveness and dependability of solar panel installations by carefully analysing these factors, thereby assisting in the wider adoption of clean and sustainable energy solutions.

The accessibility and efficiency of renewable energy systems will be further improved for a cleaner future via ongoing research and innovation in solar panel mounting systems.
